HW-T4-50F / 44F

HW-T4-50F / 44F

0 Customer Reviews
In stock and ready for shipment
Quick Overview

HIGH SPEED PICK AND PLACE SYSTEM

  • 4 Heads
  • 50 Electric Feeders
  • 6 Cameras
  • Precision Servo Mechanism
  • 0.05 mm Mounting Accuracy
  • 0.01 mm Positioning Accuracy
  • 0.02 mm Repeatability
  • 24h Non-stop Work
Model
Your selection is: HW-T4-50F / 44F
Model
HW-T4-50F / 44F - Desktop
Unit Price: $9,995.00
Total
12344

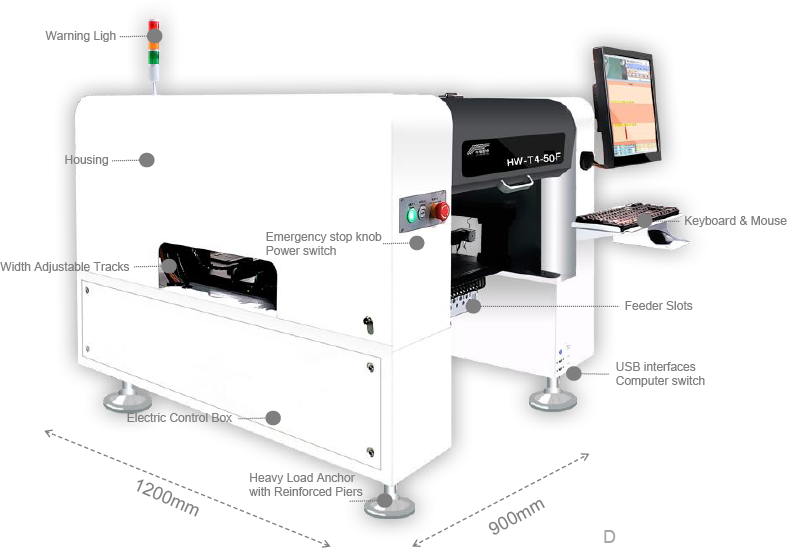

Internal Structure

Size

1. Housing
2. Placement Heads
3. Pneumatic Support Bar
4. Safety shield
5. Flexible Silent Cable Carrier
6. Feeder Slots
7. Servo Motor of Y Axis
8. Ground Ball Screw of Y Axis
9. Servo Motor of X Axis
10. Linear Motion Guide of Y Axis
11. Linear Motion Guide of X Axis
12. Ground ball screw of X axis
13. 5MP HD Camera
14. 1MP Fast HD Camera
15. Waiting Area
16. Mounting Area
17. Exit Area

Specs

PARAMETER SPECIFICATION
Model HW-T4-50F / HW-T4-44FX
Number of Placement Heads 4 (high-accuracy)
Number of IC Trays 48
Number of Feeders 50/44 (subject to 8mm feeder)
Positioning Accuracy 0.01mm
Repeated Mounting Accuracy 0.02mm
Range of Mounting Speed 7000 - 8000 Pcs/h
Applicable Components Resistor, capacitor, chip, lamp bead, etc.
Supported Maximum Area of PCB (50F) 350 * 190mm / (44FX) 350 * 280mm
Feeders Electric feeder, pneumatic feeder, vibrating feeder, IC tray, etc.
Recognition Devices Mark camera x1, fast recognition camera x4, high-precision camera x1
Maximum Height of Applicable Components ≤7mm
PCB Convey Mode Three-stage entry, automatic connection from left to right, automatic PCB positioning
Mark Positioning Manual / Automatic
Programming Method Automatic programming after manually importing files of PCB coordinates
Control System HuaweiGuochuang control system
Maximum Step Length of XY Axis 629mm * 679mm
Tracks of XY Axis Double linear motion guide + double ground ball screw
Motion mode of XY Axis Double linear motion guide + double ground ball screw
Control Computer Industrial control computer with Intel high-performance processor
Adjusting methods of tracks Electric
Range of Nozzle Buffer 4.5mm
Maximum Step Length of Z Axis 20mm
Range of Angle for Components ±180°
Motor AC Servo Motor
Driver High-speed DSP driver
Air Supply Requirements Oil water filter, ≥50L, dust filter and air pressure stabilizer, etc.
Vacuum Supply of Nozzle Japanese CKD vacuum generator integrating the high-speed vacuum burst function
Range of Air Supply Pressure 0.5 - 0.6mp
OS Independent research and development SMT intelligent OS based on Windows
Vision Display 17-inch industrial control display
Cable German Igus durable flexible cable (10 million times)
Power Supply 220V 50/60Hz
Average Power 600W
Machine Dimensions Desk machine 1140 * 900 * 900mm
Vertical machine 900 * 1140 * 1340mm
Weight (Desk machine) 210kg, (Vertical machine) 280kg

Machine Details

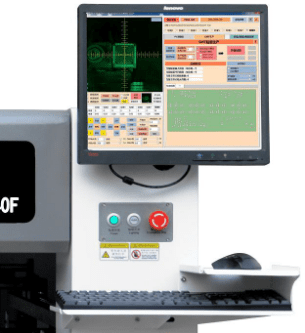

Industrial computer

Industrial Computer

17-inch display, keyboard and mouse.
User friendly OS preinstalled.
Currently Windows 10; Windows 11 support available in future update.
Easy to understand software that supports vision programming,
file importing and data preparation.

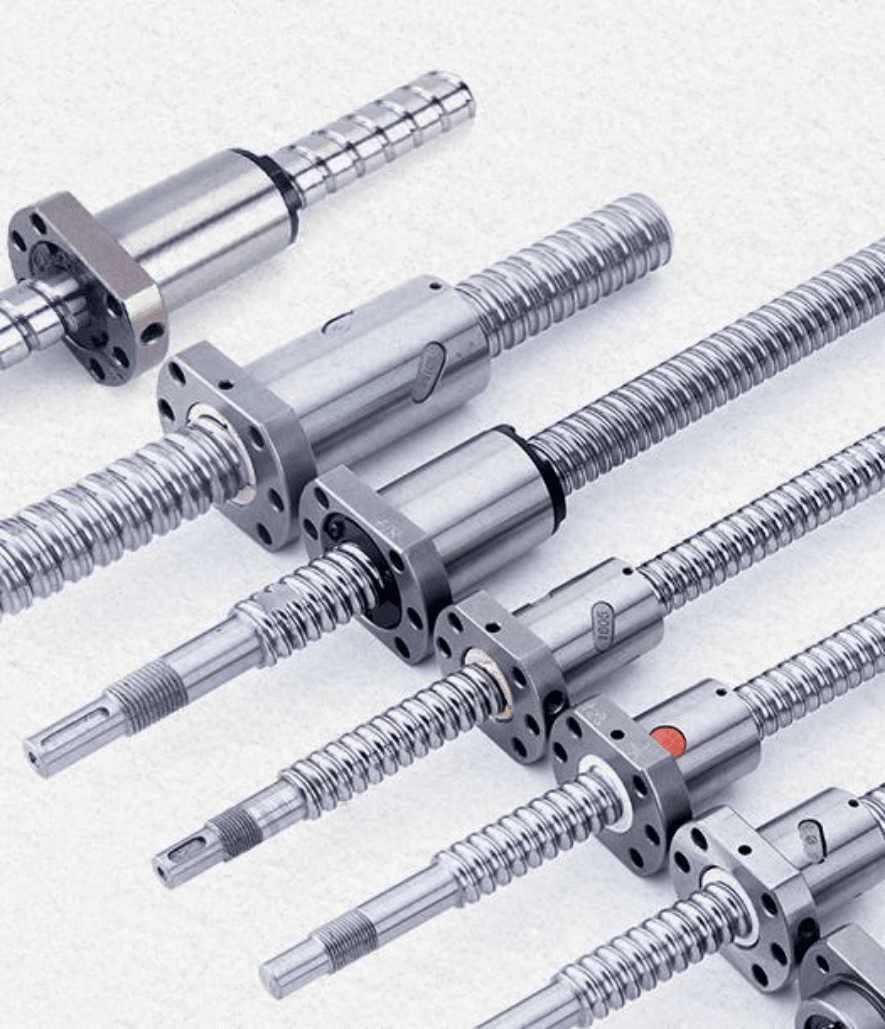

Precision ball screws

Precision Ball Screws and Linear Motion Guides

Imported precision ball srews and linear motion guides ensure long term, maintenance free operation, high accurancy, low running noise and superior machine performance.

High accuracy allows precision mounting of 0201, 0402, QFN, LQFP, BGA and other package types.

High quality motion system allows continuous operation with minimum downtime, resulting in improved productivity.

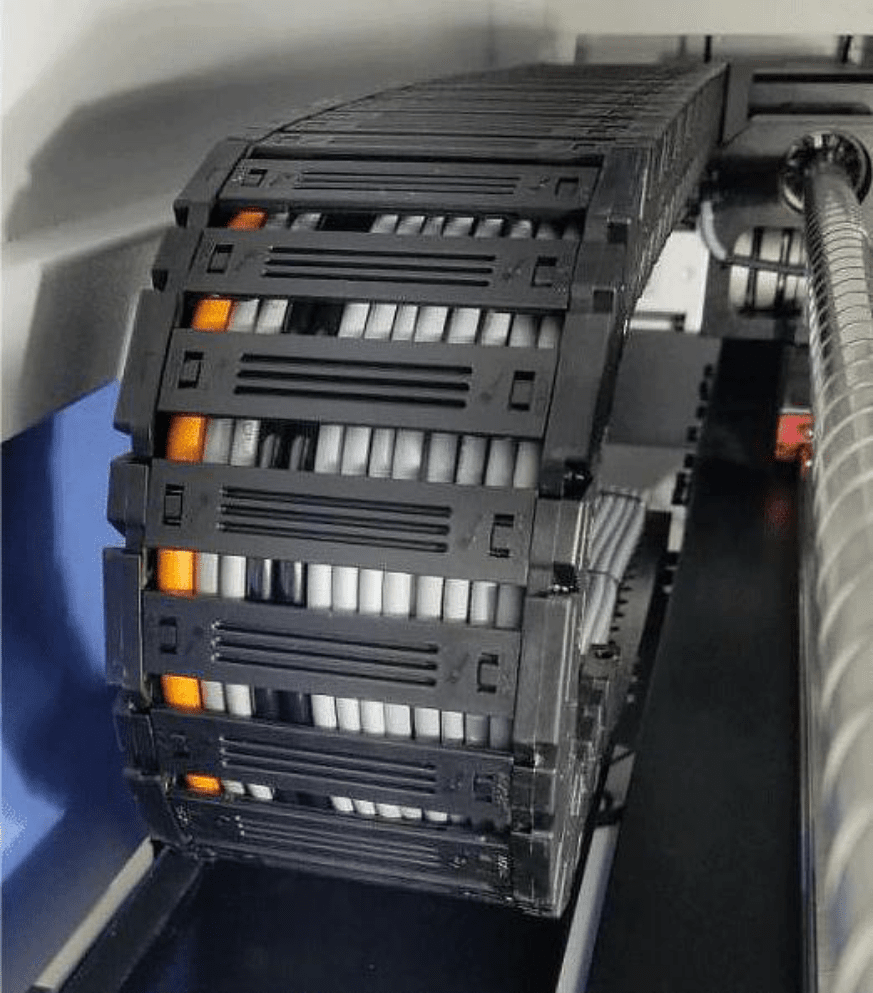

Durable cable carrier

Durable Cable Carrier and Flexible Cable

Cable carrier is rated for 10 million cycles. Igus flexible cables endure extreme temperatures and resist torsional flex problems.
These high quality cables ensure reliable connections during repeated high speed motion profiles.

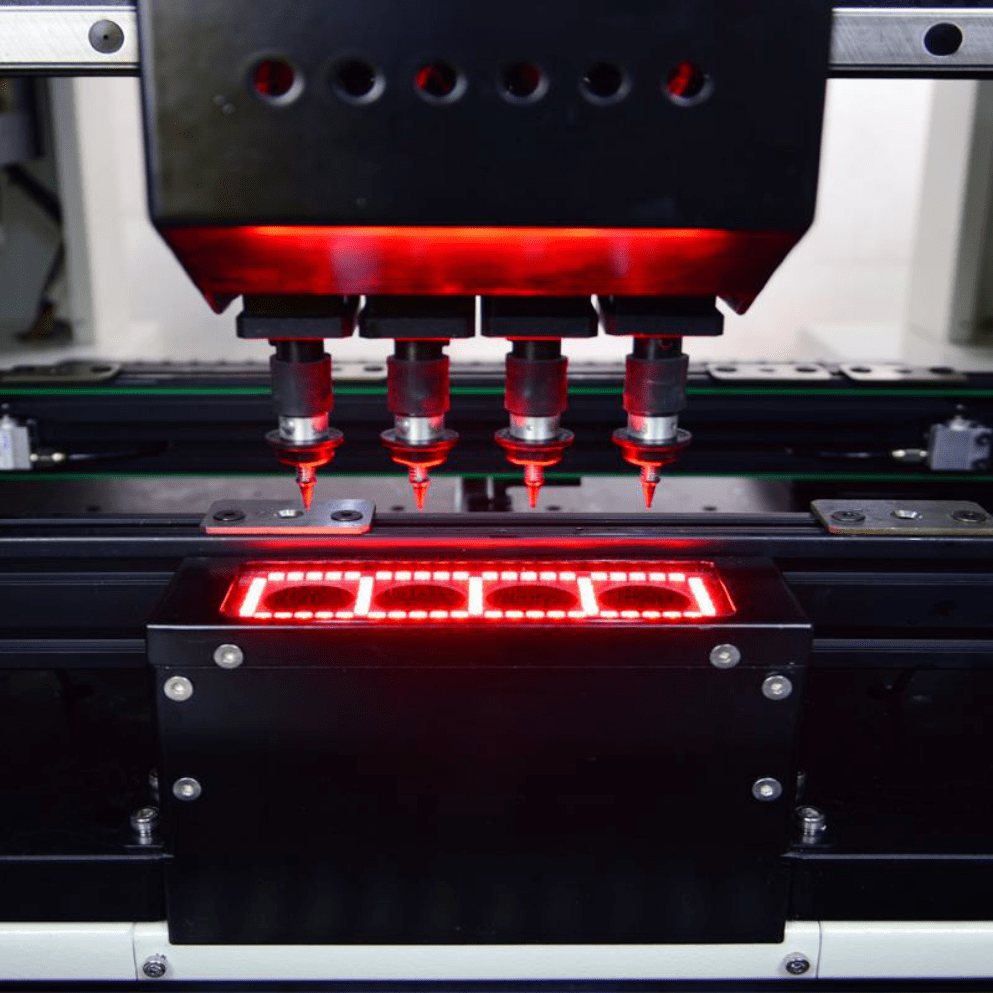

Six hd cameras

Precision Ball Screws and Linear Motion Guides

A 5MP distortion free camera is used for mounting chips and other large components.
Four high speed 1MP cameras are used to ensure proper.
placement of smaller components.
Fiducial recognition camera is mounted on placement head.

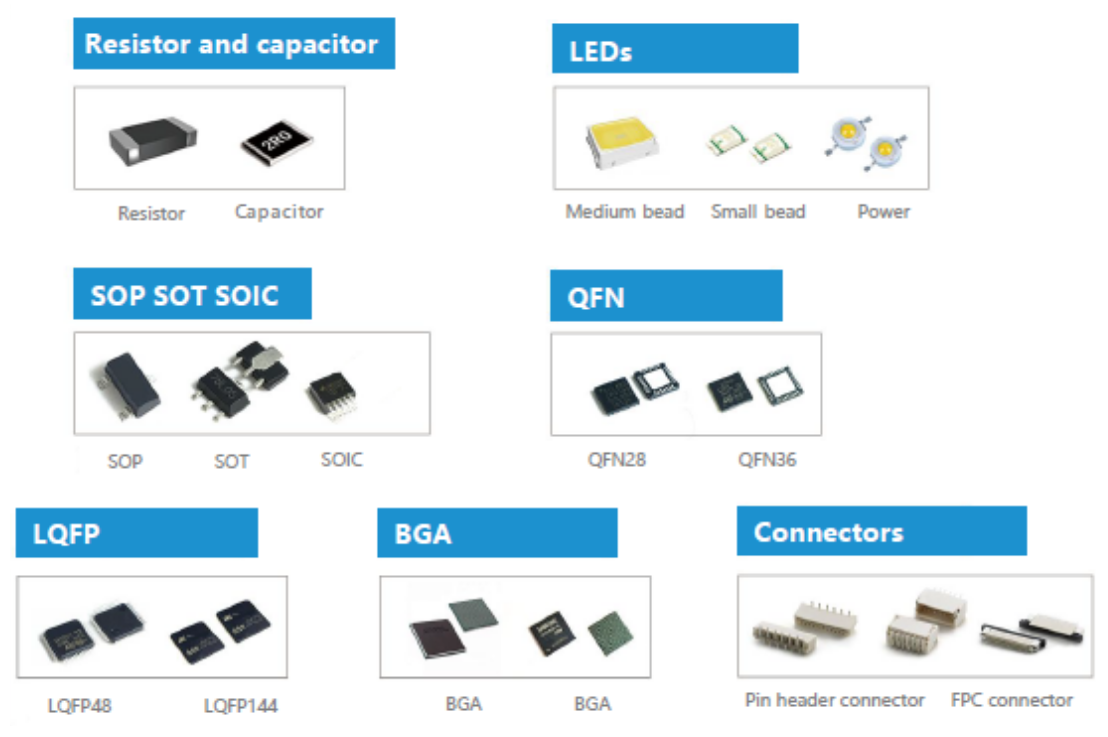

Typical Components

You can reliably place components as small as 0201.
In addition, you can place 0402, 0603, 0805, 1206, etc.
Place SOT, SOP, TSOP, LPFQ, QFN, etc.
Place BGAs with lead pitch > 0.3 mm pitch.
BGAs must be smaller than 40*40 mm.

Typical components

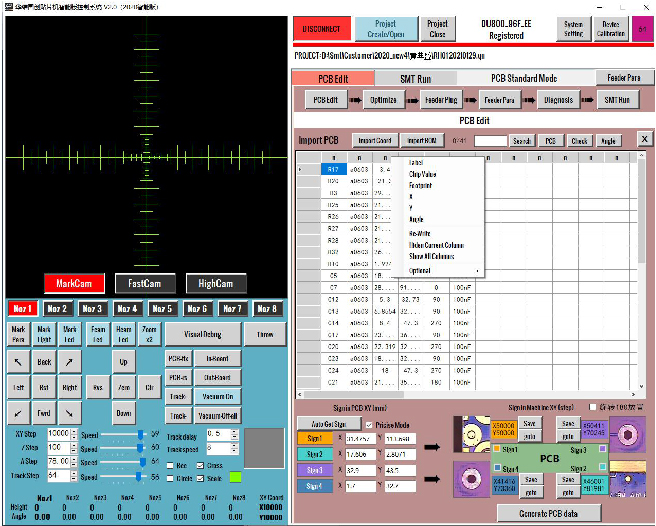

Software Operation

Reduction of errors caused by manual edit and achievement of intelligent programming

Automatic Assignment of Mark Points

Automatic assignment of mark points

Automatic Assignment of Mark Points

Automatic assignment of mark points

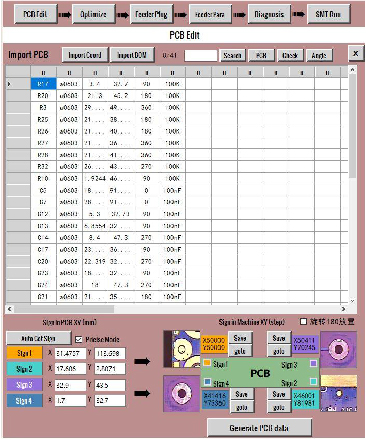

Automatic Creation of Pick & Place Program

Automatic creation of pick n place program

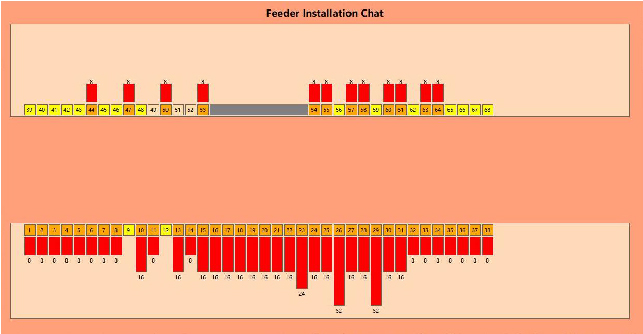

Automatic Optimization for the Layout of Nozzles and Feeders

Automatic optimization for the layout nozzles feeders
