PCB Manufacturing > US PROTOTYPE PCBS 4-PACK
US PROTOTYPE PCBS 4-PACK

US PROTOTYPE PCBS 4-PACK

#1 Prototype PCBs in North America

+ Smart DFM File Check - eliminate CAM holds NO EXTRA CHARGE
+ Any Drill Size between 0.008" and 0.350" NO EXTRA CHARGE
+ Internal Cutouts - Plated or Non Plated NO EXTRA CHARGE
+ Complex Board Shapes NO EXTRA CHARGE
+ Electrical Testing included NO EXTRA CHARGE
+ Green Soldermask - Top and Bottom NO EXTRA CHARGE
+ White Silkscreen - Top, Bottom or both NO EXTRA CHARGE

New! Immersion Gold (ENIG) with FR4 Tg180

Need PCB Assembly Services?
VIEW MORE

overview

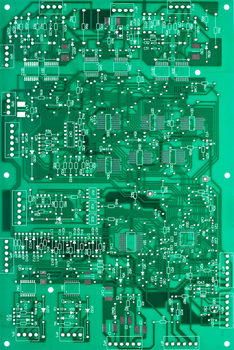

US Prototype PCBs 4-Pack

High quality, full featured prototype printed circuit boards - made in the US.

You choose LOW PRICE with a little longer lead time or FAST DELIVERY for a little bit more


US Prototype PCBs 4-Pack Standard Specifications


2, 4, 6, and 8 Layer Boards
FR4 Material - NO EXTRA CHARGE
Tin Lead HASL Finish Plating - NO EXTRA CHARGE
Green Soldermask Both Sides - NO EXTRA CHARGE
White Silkscreen Both Sides - NO EXTRA CHARGE
Internal Cutouts - NO EXTRA CHARGE
Irregular Board Shapes - NO EXTRA CHARGE
Electrical Test Included - NO EXTRA CHARGE
Final Thickness = 0.062"
Copper Weight = 1 oz (outer) / 1 oz (inner)
Minimum trace width and spacing = 0.005"
Minimum finished drill size = 0.008"
Minimum annular ring = 0.006"
Minimum slot width = 0.032"
Minimum edge to copper = 0.010" (outer) / 0.012" (inner)
Single up boards only, no panel or multiple designs

  • 1. Orders are not guaranteed to be accepted until your files pass our design rules check.
  • 2. All files will be retained for at least 1 year.
  • 3. Orders can be shipped anywhere in the world that is served by UPS or FedEx).
  • 4. We reserve the right to change prices and delivery terms at any time.

Files needed to manufacture US Prototype PCBs 4-Pack

The US Prototype PCBs 4-Pack website will only accept one file for each board ordered. The following files need to be compressed into a ZIP file and uploaded when the order is placed.

  • 1. Gerber files in 274X (extended) or 274D (basic) format
  • 2. Excellon NC drill file(s)
  • 3. Optional - a drill drawing specifying finished hole sizes, quantities, plated or non-plated



US Prototype PCBs Stack-Up

US QuickTurn PCB Stack-Up
  2 Layer 4 Layer 6 Layer 8 Layer
Layer 1 0.0017" 0.0017" 0.0017" 0.0017" 1.0 oz Copper
  0.059" 0.0075" 0.008" 0.0065"
Layer 2 0.0017" 0.0014" 0.0014" 0.0014" 1.0 oz Copper
    0.040" 0.014" 0.008"
Layer 3   0.0014" 0.0014" 0.0014" 1.0 oz Copper
    0.0075" 0.008" 0.0065"
Layer 4   0.0017" 0.0014" 0.0014" 1.0 oz Copper
      0.014" 0.008"
Layer 5     0.0014" 0.0014" 1.0 oz Copper
      0.008" 0.0065"
Layer 6     0.0017" 0.0014" 1.0 oz Copper
        0.008"
Layer 7       0.0014" 1.0 oz Copper
        0.0065"
Layer 8       0.0017" 1.0 oz Copper
Overall Thickness 0.0624" 0.0612" 0.0610" 0.0618"
Copper Thickness Core Thickness Prepreg Thickness

UL, Date Code and other marking

By default we add a UL marking to the bottom copper layer, if there is no room on the bottom copper we add it to the bottom silkscreen. We add a Date Code and a serial number to the bottom silk screen layer.


Controlled Impedance

Controlled Impedance is not available on US Prototype PCBs 4-Pack.

If you require controlled impedance try the US Custom Spec PCBs or Offshore PCB.


What types of payments do you accept?

Payment terms are by PayPal or credit card through the PentaLogix US Prototype PCBs 4-Pack website. We accept PayPal, Visa, MasterCard, American Express and Discover.

Bank card transactions are processed electronically using a secure SSL website.


If you have more questions, please contact us at sales@pentalogix.com

Shipping Schedule

Shipping schedule for 2 layer PCBs

For orders received by Noon PST the following business day is Day 1

Shipping schedule for 1 Business Day orders

Orders received by Noon Monday will ship Tuesday
Orders received by Noon Tuesday will ship Wednesday
Orders received by Noon Wednesday will ship Thursday
Orders received by Noon Thursday will ship Friday
Orders received by Noon Friday will ship Monday

Shipping schedule for 2 Business Days orders

Orders received by Noon Monday will ship Wednesday
Orders received by Noon Tuesday will ship Thursday
Orders received by Noon Wednesday will ship Friday
Orders received by Noon Thursday will ship Monday
Orders received by Noon Friday will ship Tuesday

Shipping schedule for 3 Business Day orders

Orders received by Noon Monday will ship Thursday
Orders received by Noon Tuesday will ship Friday
Orders received by Noon Wednesday will ship Monday
Orders received by Noon Thursday will ship Tuesday
Orders received by Noon Friday will ship Wednesday

What is the shipping schedule for 4, 6, and 8 layer PCBs?

For orders received by Noon PST the following business day is Day 1
Shipping schedule for 3 Business Days orders
Orders received by Noon Monday will ship Thursday
Orders received by Noon Tuesday will ship Friday.
Orders received by Noon Wednesday will ship Monday
Orders received by Noon Thursday will ship Tuesday
Orders received by Noon Friday will ship Wednesday

Shipping schedule for 4 Business Days orders

Orders received by Noon Monday will ship Friday
Orders received by Noon Tuesday will ship Monday
Orders received by Noon Wednesday will ship Tuesday
Orders received by Noon Thursday will ship Wednesday
Orders received by Noon Friday will ship Thursday

Shipping schedule for 5 Business Days orders

Orders received by Noon Monday will ship Monday
Orders received by Noon Tuesday will ship Tuesday
Orders received by Noon Wednesday will ship Wednesday
Orders received by Noon Thursday will ship Thursday
Orders received by Noon Friday will ship Friday

Shipping schedule for 6 Business Days orders

Orders received by Noon Monday will ship Tuesday of the next week
Orders received by Noon Tuesday will ship Wednesday of the next week
Orders received by Noon Wednesday will ship Thursday of the next week
Orders received by Noon Thursday will ship Friday of the next week
Orders received by Noon Friday will ship Monday of the second week
Add 1 lead-time process day for these US Holidays
New Year's Day
Memorial Day
Independence Day
Labor Day
Thanksgiving (2 days)
Christmas
